Wall Mounted IW-25-5 IN Wall Dehumidifier With Bi-Polar Ionizer
IW-25-5 IN Wall Dehumidifier
Quiet | Sleek | Tankless | IN Wall Dehumidifier
Designed for multi-family and residential housing.
The patent pending IW-25-5 In Wall Dehumidifier with combined Bi-Polar Ionization Technology controls excessive moisture that contributes to poor indoor air quality, property damage, mold, comfort complaints, and possible liability risks. The IW-25-5 in wall dehumidification system helps lower indoor relative humidity helping prevent moisture issues. * The quiet and easy to install built-in dehumidifier system is suited for both new construction and retrofit installations in multifamily, hotels, student housing, and residential applications. Removes up to 33 pints per day (@80°F and 60%RH) in 1,500 square feet. *
The IW-25-5 removes 33 pints of moisture in 1,500 square feet. This fifth generation dehumidifier includes an ozone-free Bi-polar Ion Generator that distributes ions which bond to indoor pollutants including bacteria, viruses, pollen, mold and odors, breaking them down and transforming them into water vapor.
HOW IT WORKS?

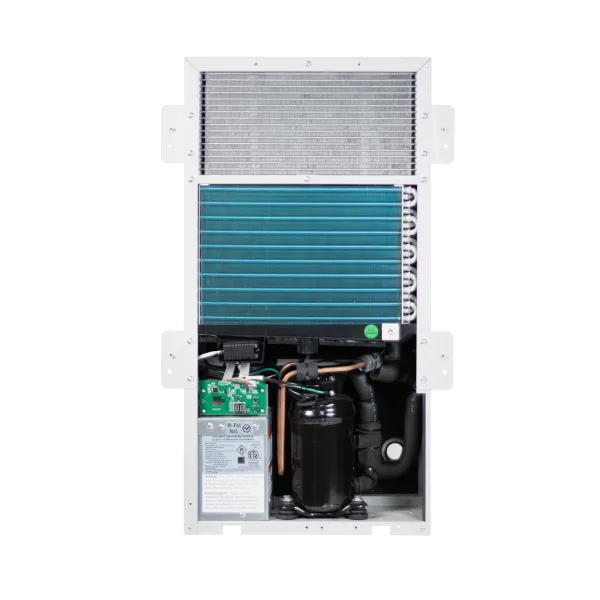

The IW25-5 IN WALL Dehumidifier system with Bi-Polar Ionization Technology utilizes its integral humidistat to monitor the indoor conditioned space. When the relative humidity goes above the selected setpoint, the dehumidifier will energize. As air is drawn across an evaporator coil, which is cooler than the dew point of the air, moisture condenses. The air is then reheated through the condenser coil and distributed back into the room.
INSTALLATION?
IW25-5 In-Wall Dehumidifier with combined Bi-Polar Ionization Technology is recessed and fits in a 2 x 6 wall or through a 2×4 interior wall. For semi-recessed applications, an IDS Exterior Sleeve (sold separately) can be used.
WHAT’S IN THE BOX?
Includes: the IW25-5 IN Wall dehumidifier with a bi-polar ion generator, 1 in-wall front cover, 1 in-wall washable air filter, 1 drain hose and clamp, 1 power cord, 1 front cover tool, 1 set of tamper-resistant screws and 1 Operations Manual. All dehumidifier parts are included with purchase. The mounting screws are not provided with purchase because the type needed may vary Our team is available to help find the best fit for the IW25-5 On-Wall Dehumidifier.
For additional information, view our IW25-5 In-Wall Specifications Sheet and In-Wall Submittal Data Sheet.
Accessories
Dimensions:
IN Wall Unit Base: 27.625” x 14.25” x 5.75”
IN Wall Cover: 30.375” x 17.25” x 1.5”
IN Wall Rough Opening: 28.0” x 14.5” x 5.75”
IN Wall Base Unit & Cover: 30.375” x 17.25” x 7.25”

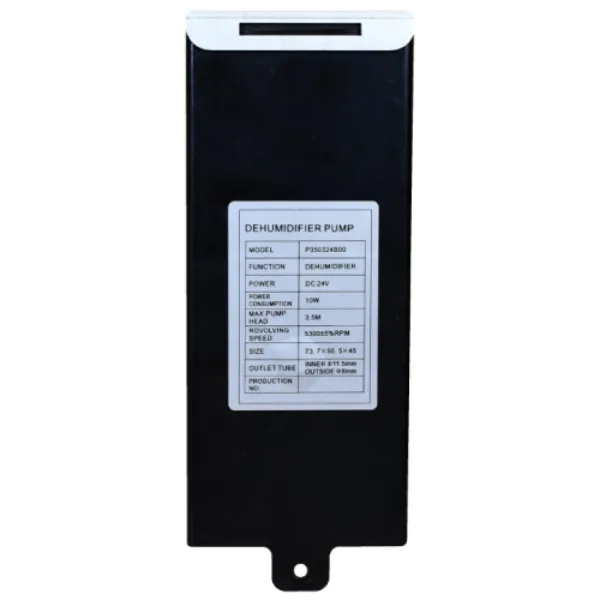

IW25-5 Condensate Pump
IW25-5 Washable MERV Air Filter Replacement

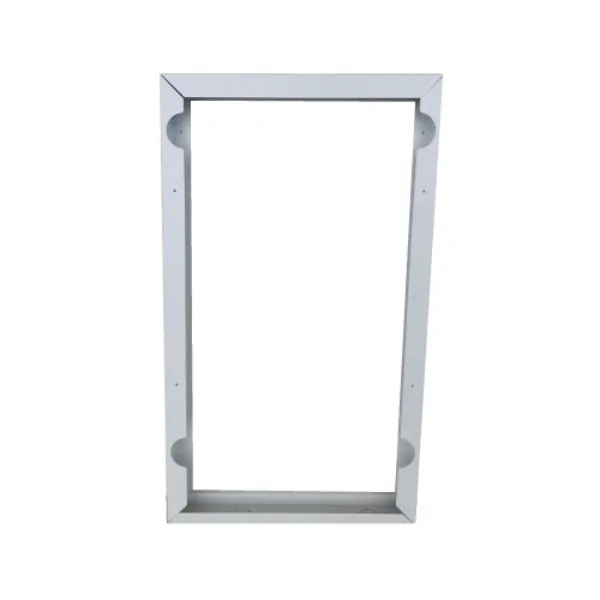

IW25 IN Wall Exterior Sleeve
Key Attributes:
• Energy Star Certified***
• 5-Year Warranty – Parts and Labor
• NGBS Green Certified
• Bi-polar ionizer – UL 2998 Validation Badge for Zero Ozone Emissions
• Quiet and Easy Installation
• Stand Alone – Independent of HVAC Systems
• Hangs ON WALL
• Hands-Free and Tankless – drains into existing plumbing
• Standard 120V plug-in or Hard Wire Capable
• Washable Air Filter – MERV
• Minimal Maintenance
• LED Maintenance Light Reminder
• R-32 Refrigerant
• Tamper Proof
• Hard Wire or standard 120V plug-in
• Internal Condensate Pump Available
Innovative Dehumidifier Systems – the pioneers of built-in, supplemental dehumidification.
For additional details or assistance, see the IW25-5 dehumidifier system with Bi-Polar Ionization Technology’s Operations Manual and/or contact Innovative Dehumidifier Systems.
*Layout and moisture conditions vary in every apartment / home; in typical conditions, the IW25-5 ON-wall dehumidifier can maintain the RH of 59% or less but is not guaranteed. Moisture removal will vary in relation to dehumidifier’s power, temperature, and relative humidity. Amp draw varies at different climate conditions.
**47 dBA is tested in a controlled environment; levels may vary due to install and install location.
***Meets Energy Star standard (@65℉/60%RH) – 21 ppd/1.64 L/kWh
Specifications and Downloads
Product Specs and Downloads
| In Wall Base Unit | 27.625” x 14.25” x 5.75” |
| In Wall Unit / Cover | 27.625” x 14.24” x 7.25” |
| Keyhole Mount Distance | 3.125 |
| Weight | 39 lbs |
| Water Removal @ 80⁰F/60% RH | Up to 33 PPD |
| Water Removal @ 65⁰F/60% RH | Up to 21 PPD |
| Energy Factor @ 80⁰F/60% RH | 1.65 L/kWh |
| Energy Factor @ 65⁰F/60% RH | 1.92 L/kWh |
| Spaced For | 1,500 sq. ft. |
| Air Flow (with clean air filter) | 120 cfm |
| Sound Pressure Level | 47 dBA |
| Operating Temperature Range | 46-95⁰F |
| Functioning Relative Humidity Range | 36-90% |
| Warranty | 5 Years on Parts & Labor |
| Drain Connection Length | 10′ |
| Drain Connection Diameter | ¾” O.D. |
| Refrigerant | R32; 155g |
| Supply Voltage | 120 VAC/60 Hz |
| Rated Average Power Consumption | 300 Watts @80⁰F/60% RH |
| Max Power Consumption | 440 Watts @90⁰F/95% RH |
| Max Absorbed Current F.L.A | 2.8 Amps @80⁰F/60% RH |
| Locked Rotor Current L.R.A. | 13.2 Amps |
| Ion Output | 3,000,000/cc |
| Test Condition | 20Cm; Wind Speed 1m/s |
| Ion Type | Bi-Polar/Positive and Negative Ions |
| Input Voltage | Input Voltage |
